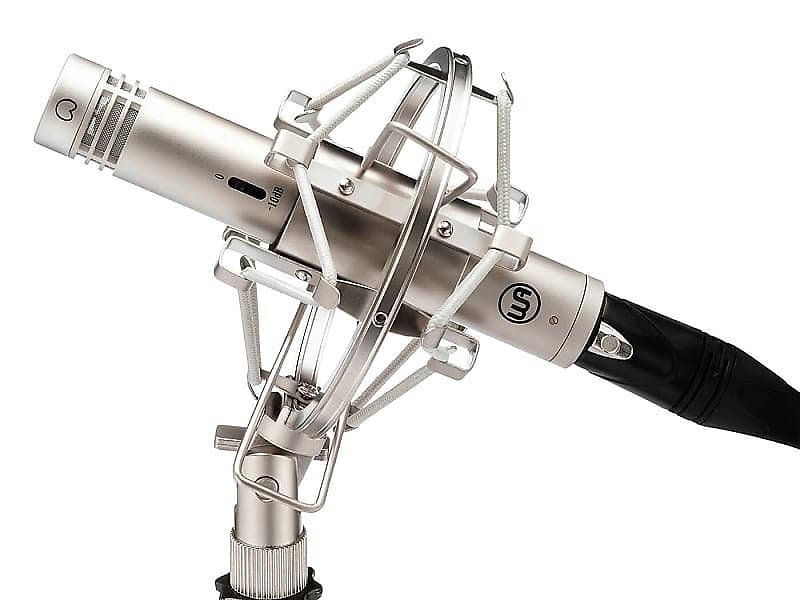

Warm Audio WA-84 Small Diaphragm Condenser Microphone
Here we have a brand new Warm Audio WA-84 Small Diaphragm Condenser Microphone!
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources!
The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound!
The WA-84 utilizes a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84’s capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone!
The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET!
The WA-84 utilizes an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone!
The WA-84 proudly utilizes Wima, polystyrene and tantalum through-hole capacitors throughout!
- Utilizes a CineMag USA Transformer
- Directional Pattern: Cardioid
- Fully Discrete Vintage-style Signal Path
- Vintage Capsule Reproduction
- Package Includes: Microphone, Cardioid Capsule, Shock-mount, Mic Clip, Windscreen and Carrying Case
- 48V Phantom powered
- Frequency Range: 20Hz - 20kHz
- Sensitivity: -39dB or 11mV/Pa @ 1kHz
- Output Impedance: 200Ω
- Rated Load Impedance: ≥1kΩ
- Pad: 0db or -10db
- Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent Noise: 16dBA (IEC651)
- Dynamic Range: 107dBA (IEC651)
- Connector: 3-Pin Gold-Plated XLR
- Weight: 122g each
